Kubernetes Clusters & Registries

Some work needs more than one machine: a service deployed to Kubernetes, an image built in one place and run in another, a cloud API to test against. Bromure Agentic Coding can run that infrastructure for you, on this Mac, next to your machines (workspaces, in the settings editor):

• A Kubernetes cluster is a set of node VMs running k3s, with optional replicated storage, a load balancer, an ingress controller and local cloud emulators. The machines you allow get it as a context in ~/.kube/config.
• A registry is a private Docker registry in its own small VM. Machines you allow can push to it; every cluster can pull from it.

Both are shared resources: one cluster or registry serves several machines, and their agents learn about it through the infrastructure MCP server.

Note: Don't confuse these clusters with Kubernetes credentials in a machine's Credentials pane. Those import contexts for clusters that exist elsewhere (EKS, GKE, a cluster at work) and broker their credentials on the wire. The clusters in this chapter are VMs that Bromure creates and runs on this Mac.

Where to find them

• Workspaces › Infrastructure › Create Kubernetes Cluster… and Create Registry… open the creation sheets. With a mirror window of a remote Mac in front, these items create the cluster or registry on that Mac (see Remote Access).
• Once one exists, the sidebar's Virtual Machines section gains a Kubernetes list and a Registries list, each with a + to create another. A row shows a state dot, the name and a one-line status; click it to put its dashboard on the stage. Its ⋯ menu offers Start, or Restart and Stop while running, Workspace access… and Delete….

Creating a cluster

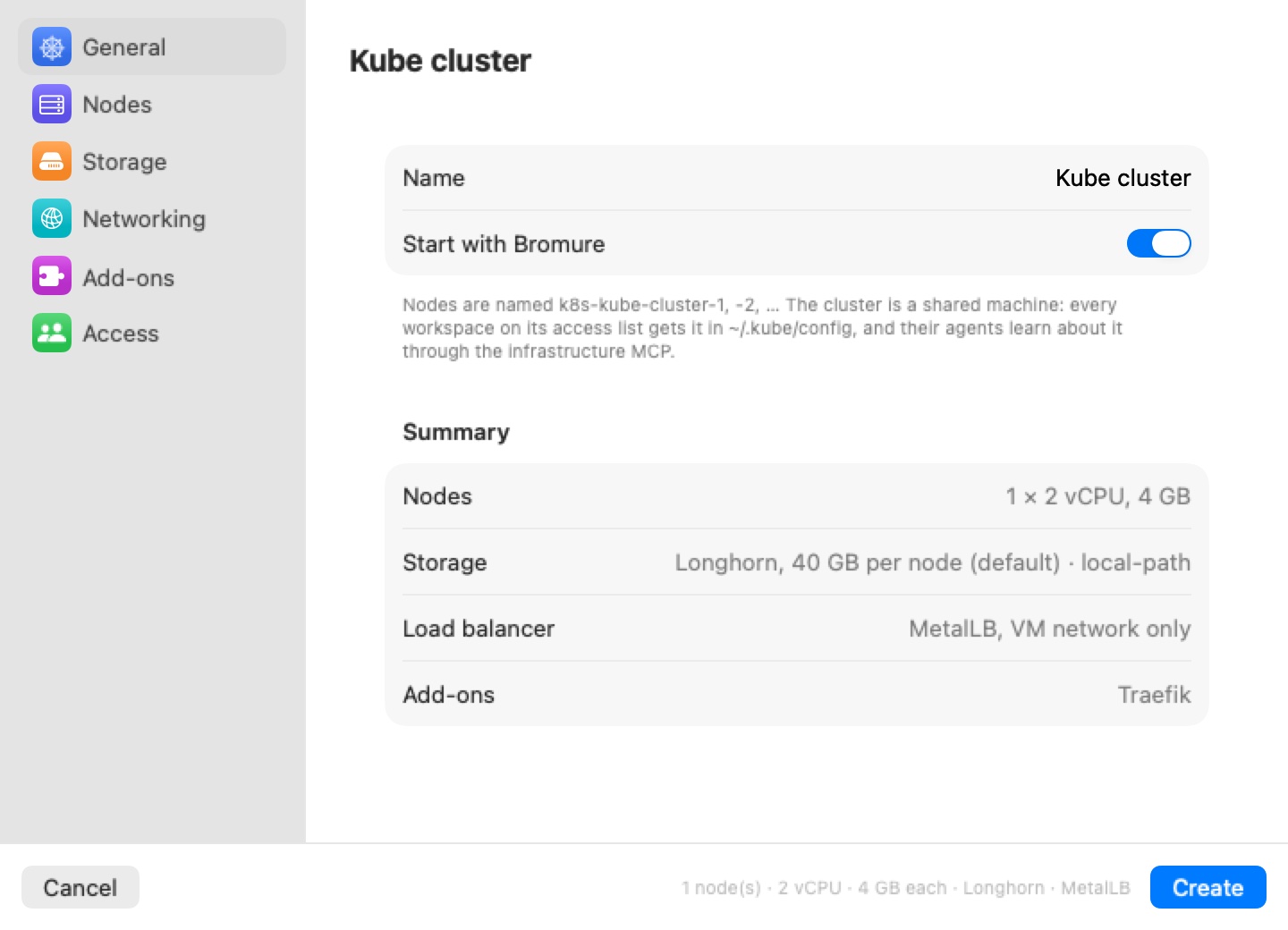

The New cluster sheet has a sidebar of six panes — General, Nodes, Storage, Networking, Add-ons, Access — like a machine's settings editor. Create stays disabled until the sheet is valid; a short line beside it says why (for example "Give the cluster a name.").

General

A Summary lists the nodes, storage, load balancer and add-ons you have chosen.

Nodes

With one node, it runs the control plane and your workloads together. With more, node 1 is the control plane (and still runs workloads) and the others join as workers. The pane shows the total RAM, and warns "That's N GB of this Mac's M GB — workspaces need room too." when the cluster would leave less than 4 GB for everything else.

Storage

• Longhorn distributed storage (on by default) — replicated block volumes served over iSCSI from a dedicated Data disk per node (default 40 GB, 10–2000 GB). The disks are sparse: only written blocks use space on the Mac. Longhorn keeps up to three replicas, never more than the number of nodes. Its storage class is bromure-longhorn, the cluster's default. Turned off, only k3s's node-local local-path class remains, which pins a pod to its node.
• Synology NAS — persistent volumes on your NAS through Synology's CSI driver. Fill in DSM address, Port, HTTPS, DSM user and DSM password, optional Volumes (for example /volume1, /volume3), Protocol — iSCSI (block LUNs) or SMB (shared folders) — and Filesystem. With no volumes named, DSM picks one with free space and the class is bromure-synology; naming volumes gives one class each (bromure-synology-volume1, …). The first Synology class becomes the cluster's default; Longhorn stays available by name. The DSM account needs storage-manager rights. The password is stored encrypted on this Mac and only ever lands in the cluster's own Secrets.

Networking

Load balancer chooses how Services of type LoadBalancer get an address:

With the Bromure LAN load balancer, two Service annotations change the default per Service: bromure.io/scope: vm keeps it private (an address on the VM network, for the machines and this Mac only), and bromure.io/loadBalancerIP asks for a specific address.

Traefik ingress controller (on by default) keeps k3s's bundled ingress. With the LAN load balancer it publishes ports 80 and 443 on this Mac.

Warning: The Bromure LAN load balancer makes cluster services reachable by anyone on your network. Choose it deliberately; the MetalLB default keeps everything on this Mac.

Add-ons

Local cloud emulators from the open-source floci family, each one a LoadBalancer Service on its own port, with its data on the cluster's default storage class:

Each enabled emulator gets a project version field. Leave it empty (latest release) to get the newest release on Docker Hub when the cluster is set up; type a tag (2.1.0) or a full image reference to pin it. If Docker Hub can't be reached, the latest tag is used. Services that spawn containers (Lambda, Cloud Run and the like) use the node's Docker and are best effort.

Access

Which machines get the cluster:

• All workspaces, including new ones (default), or
• Only these workspaces, with a checkbox per machine. "At least one workspace must keep access."

Machines on the list get the cluster in their ~/.kube/config (the context is named after the cluster) and see it through the infrastructure MCP. You can change this later from the dashboard.

Click Create. Provisioning takes a few minutes; the dashboard's Log tab shows each step.

The cluster dashboard

The dashboard's header shows the cluster's name, a phase pill and a summary (nodes, vCPU and memory each, the k3s version, uptime), with Start, or Restart and Stop, and a Cluster actions menu: Copy kubeconfig, Workspace access…, Start with Bromure and Delete cluster….

Six tabs, with a filter field for the lists:

Delete cluster… "Stops every node and deletes their disks, including all Longhorn volumes. Workspaces lose the cluster from their kubeconfig. This can't be undone."

Using a cluster from a machine

In an allowed machine, kubectl simply works: the cluster's context is in ~/.kube/config, and kubectl talks to the control-plane node directly over the VM network. That traffic doesn't pass through the host's intercepting proxy — node addresses are excluded from the machine's proxy settings — so it doesn't appear in the machine's trace.

The Copy kubeconfig action gives you a standalone kubeconfig for tools on the Mac itself. The node VMs are also reachable with the CLI, for example bromure-cli vm exec k8s-dev-1 -- kubectl get nodes (see CLI, API & MCP).

Registries

Creating a registry

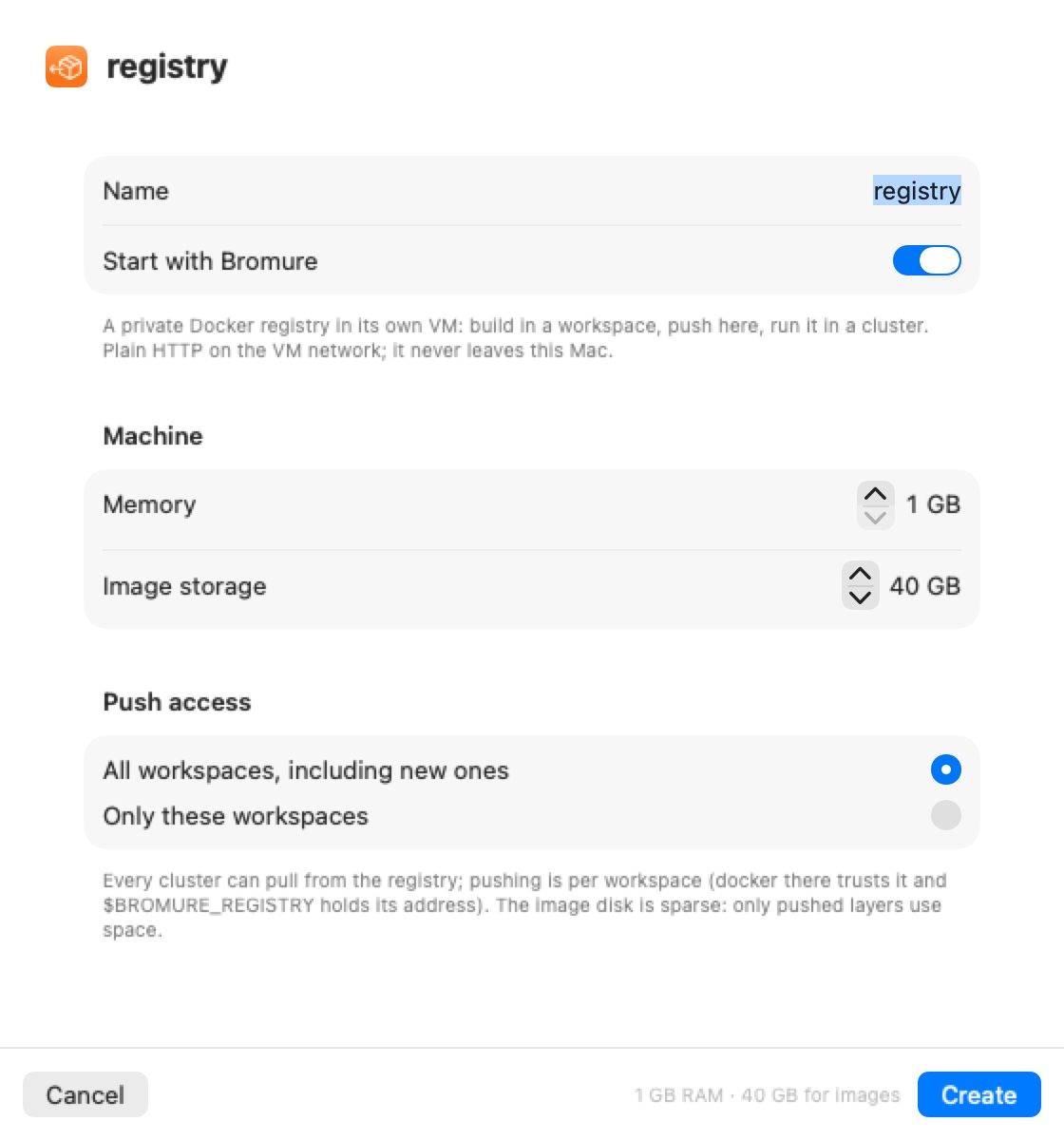

Create Registry… opens a sheet: "A private Docker registry in its own VM: build in a workspace, push here, run it in a cluster. Plain HTTP on the VM network; it never leaves this Mac."

The image disk is sparse: only pushed layers use space. Every cluster can pull from every registry; push access is per machine.

The registry dashboard

The header shows the registry's address (<ip>:5000), its memory and disk, Start / Restart / Stop, and a menu with Copy address, Workspace access…, Start with Bromure and Delete registry…. Tabs: Images (cards for Repositories, Disk and Address, a Push from a workspace snippet, and the list of images and tags), Access and Log.

In a machine with push access, Docker already trusts the registry's address, and $BROMURE_REGISTRY holds it (with access to several registries, the first one's), so you can push straight away:

docker build -t $BROMURE_REGISTRY/myapp:dev .
docker push $BROMURE_REGISTRY/myapp:dev
kubectl run myapp --image=$BROMURE_REGISTRY/myapp:dev

Clusters are configured to pull from every registry automatically; when a registry is created, moves or is deleted, running clusters are updated. While a registry is stopped, pulls from it fail like any registry outage.

Delete registry… "Stops the registry VM and deletes every image it holds. Workspaces and clusters stop trusting its address. This can't be undone."

Agents and the infrastructure MCP

Every machine's agents get a bromure-infrastructure MCP server (vsock port 5834), limited to the clusters and registries that machine may use. Its tools:

A cluster or registry an agent creates is shared with every machine (All workspaces) and starts with Bromure.

Lifecycle

• Quitting the app suspends cluster nodes and registries (a snapshot of their memory), and the next start resumes them. A snapshot that won't restore falls back to a fresh boot.
• Stop shuts k3s and the containers down cleanly before powering the VMs off, allowing up to 60 seconds per machine.
• If a node or registry VM fails its filesystem check at boot, Bromure detects it, stops the VM, repairs its system and data disks, and boots it again.
• A cluster whose first setup never finished is set up again on its next start.
• Deleting a machine removes it from every access list; a list that would become empty falls back to all machines.
• Clusters and registries appear in a remote Mac's mirror window like everything else (see Remote Access).

Cluster records live in ~/Library/Application Support/BromureAC/kube/clusters.json; each cluster's node disks are under ~/Library/Application Support/BromureAC/kube/<cluster-id>/.
